Produktbeskrivelse

PowerWalker VI 850 SH FR

Artikkelnr.: 10120053
EAN: 4260074975109

USB with Human Interface Device (HID) support and WinPower software for controlling and monitoring
Surge protection on phone line and modem
Several versions - Type F (CEE 7/3), Type E (CEE 7/5), IEC also with UK input cable
Fast charging 2-4h to 90%
Immediate successor of VI SE Series

PowerWalker VI SH provides comprehensive protection and high power density in small and economic package. The UPS can be automatically started up without AC power supplied. In addition, this UPS provides RJ-11 surge protection. Equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or small office application.

The VI SH Series are equipped with stronger charger to reach 90% of battery capacity in 2-4h. With Human Interface Device (HID) support for USB communication it allows quick and easy setup with any operating system.

IEC

Generelle funksjoner
Type	Line-Interactive
Strømkapasitet	850VA / 480W
Utgangseffektfaktor	0.56
Input
Spenningsområde inngang	170-280 VAC ±7%
Frequency (Synchronized Range)	50Hz or 60Hz
Output
Nominell utgangsspenning	230 VAC
Spenningsregulering	±10%
Frequency (Battery Mode)	±1Hz
Tekniske detaljer
Transfer Time [AC to Battery]	4-8ms
Overload Capacity	N/A
Charger	1.2A
Protection	Discharge prevention; Deep discharger; Overcharge; Overload
Fan Logic	No fan
LED Indicators	AC Mode: green LED lighting; Battery Mode: green LED flashing
Effektivitet
LINE mode full Load	95.0%
Batterier og batteritid
Batterier	1x 12V/9Ah
DC Voltage	1 x 12V
Recharge Time	4h to 90%
Full Load Backup Time	0.1min
Half Load Backup Time	6min
Tilkoblinger og kommunikasjon

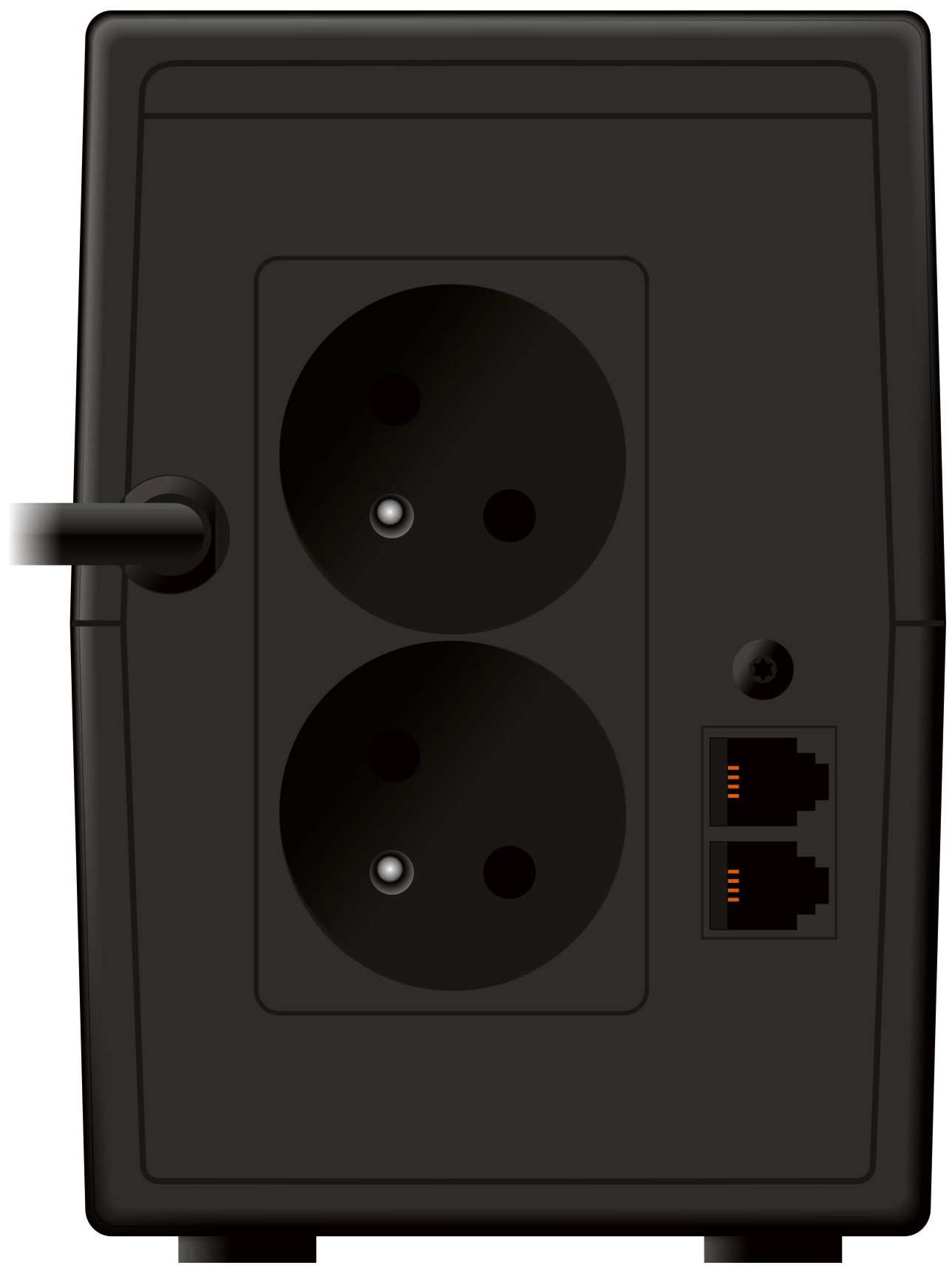

CEE 7/5 (Type E) Outlet	2
Input	CEE 7/7
Programvare	WinPower
USB port	Ja
HID-støtte	Ja
RJ-11 protection	Ja
Omgivelser
Støynivå	No Fan
Temperatur	0°C – 40°C
Luftfuktighet	0% - 90% RH (non-condensing)
Logistikk
Package Content	UPS, Manual, USB Cable
Manual Languages	EN/DE/PL/FR/PT/RU/CZ/NO/SE/FI/DK
EAN	4260074975109
Bredde	100 mm
Høyde	143 mm
Dybde	290 mm
Vekt	5 kg
Giftbox - Bredde	140 mm
Giftbox - Høyde	223 mm
Giftbox - Dybde	330 mm
Giftbox - Vekt	5.2 kg
Carton - Bredde	380 mm
Carton - Høyde	250 mm
Carton - Dybde	598 mm
Pcs. per box	4
Pcs. per layer	16
Pcs. per pal	128
