Produktbeskrivelse

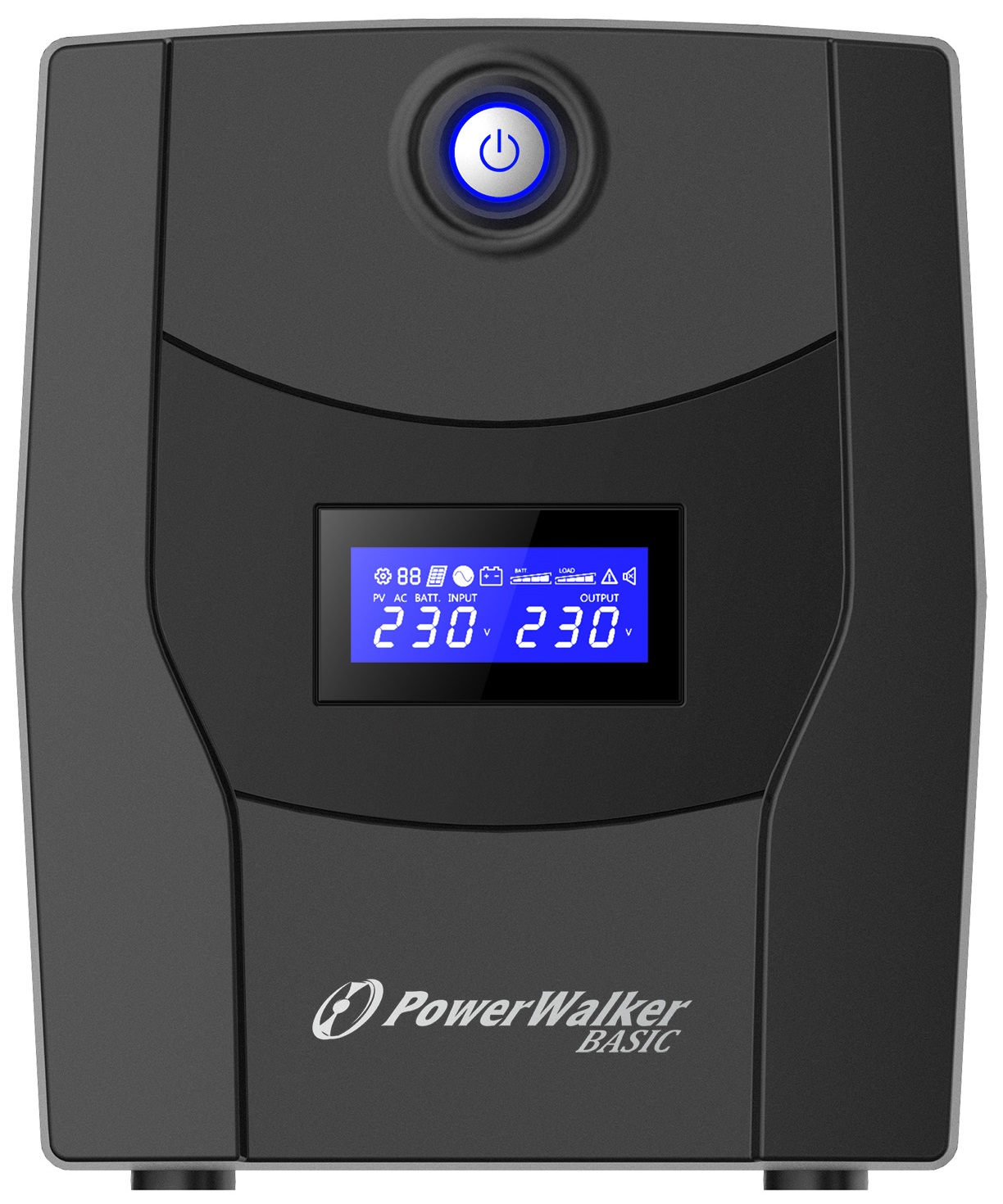

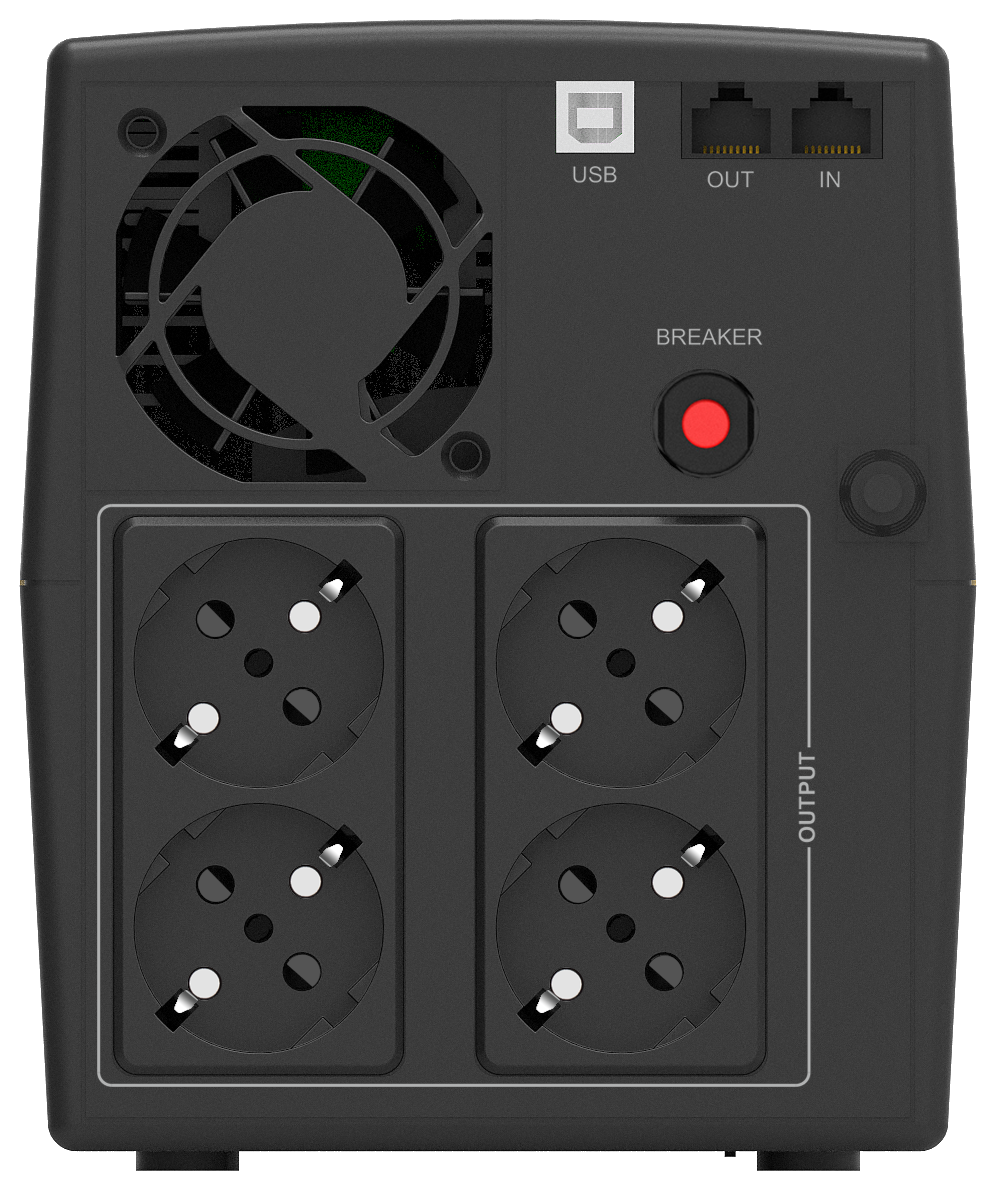

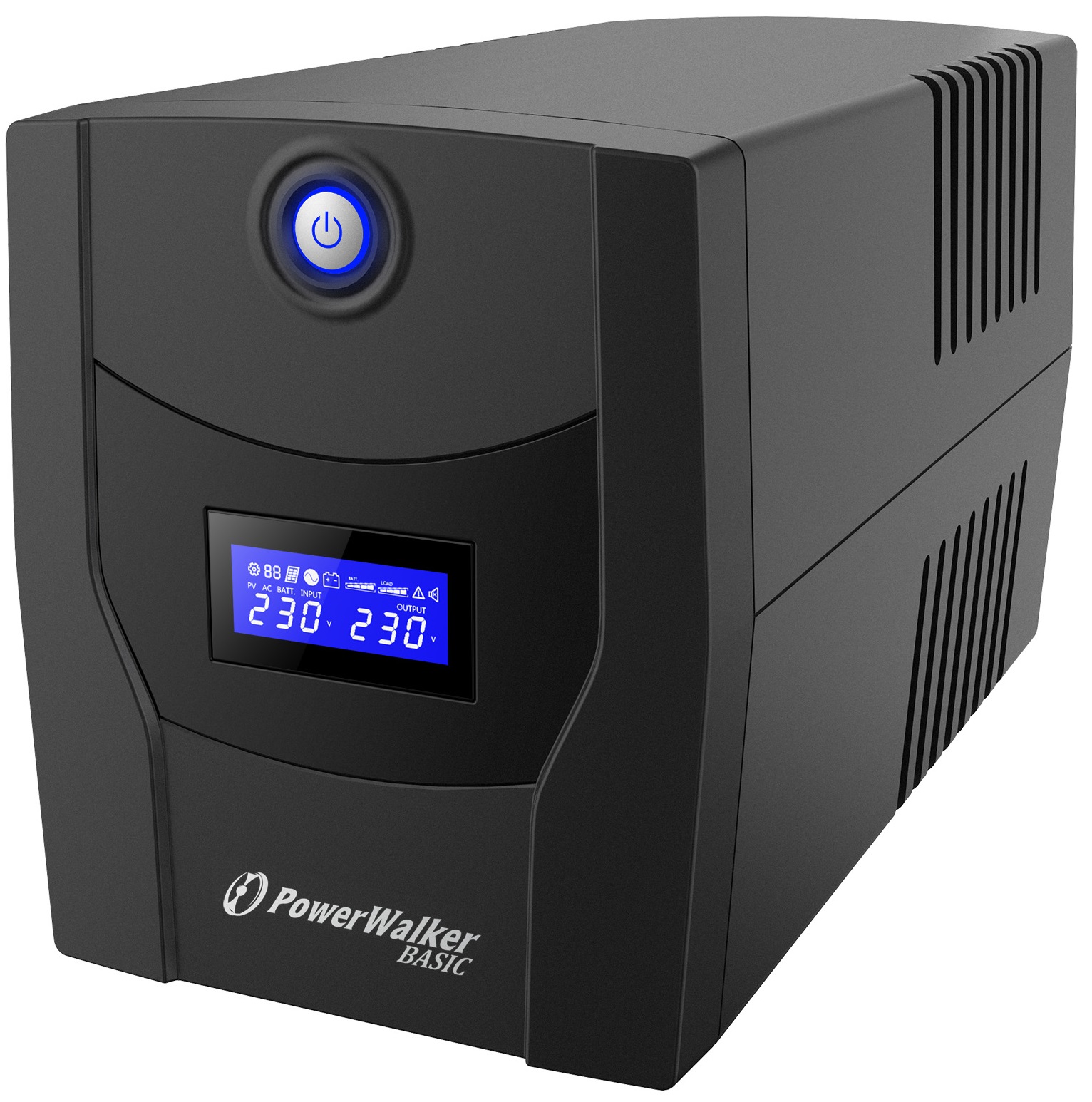

PowerWalker Basic VI 2200 STL

Artikkelnr.: 10121077
EAN: 4260074980721

Human Interface Device (HID) compatible USB connection (no additional drivers needed)
Multi-purpose button (single-click, double-click or hold to control different functions)
Equipped with Boost and Buck AVR to stabilize output voltage
Cold (DC) Start Function

The PowerWalker Basic VI 600/800/1000/1200/1500/2200 STL series is designed to answer the essential market needs. This line interactive UPS will protect your load from power failures and voltage disturbances, while remaining affordable and compact. It is equipped with a USB port with HID support allowing easy and immediate communication with any O/S.

Additionally this series offers an advanced LCD panel with a smart multi-functional button (a double click will mute the alarm and a long-press will control the output).

Generelle funksjoner
Type	Line-Interactive
Strømkapasitet	2200VA / 1320W
Utgangseffektfaktor	0.60
Input
Spenningsområde inngang	162-290 VAC
Frequency (Synchronized Range)	50Hz or 60Hz
Output
Nominell utgangsspenning	230 VAC
Frequency (Battery Mode)	±1%
Tekniske detaljer
Transfer Time [AC to Battery]	4ms
Charger	0.7A
Fan Logic	Always on (half speed) Full speed if load > 25% in battery mode or AVR mode
Effektivitet
LINE mode full Load	95.0%
Batterier og batteritid
Batterier	2x 12V/9Ah
DC Voltage	2 x 12V
Recharge Time	8h to 90%
Half Load Backup Time	3.9min
Tilkoblinger og kommunikasjon
CEE 7/3 (Type F) Outlet	4
Input	CEE 7/7
Programvare	PowerMaster
USB port	Ja
HID-støtte	Ja
RJ-45/RJ-11 protection	Ja
Omgivelser
Støynivå	< 45dB
Temperatur	0°C – 40°C
Luftfuktighet	0% - 90% RH (non-condensing)
Logistikk
Package Content	UPS, Manual
Manual Languages	EN/FR/PL/PT/BG/RO/RU
EAN	4260074980721
Bredde	148 mm
Høyde	178 mm
Dybde	298 mm
Vekt	10.8 kg
Giftbox - Bredde	193 mm
Giftbox - Høyde	247 mm
Giftbox - Dybde	335 mm
Giftbox - Vekt	10.5 kg
Carton - Bredde	600 mm
Carton - Høyde	272 mm
Carton - Dybde	356 mm
Carton - Vekt	34.9 kg
Pcs. per box	3
Pcs. per pal	105

Navn	Produktbeskrivelse	Bilde
ATS Item Number: 10120543 EAN: 4260074974959	PowerWalker ATS (Automatic Transfer Switch) also known as STS (Static Transfer Switch) is designed with two independent power inlets to supply power to the load from primary power source. Should primary power source fail, the secondary will automatically backup the connected equipment without any interruption. The transfer time from one to another is seamless to the connected equipment. After swit ...
MBS/PDU Tower 1-3kVA Item Number: 10120500 EAN: 4260074973082	An external Maintenance Bypass Switch with function of a PDU (Power Distribution Unit). It provides continuous power without shutting down the connected loads during UPS scheduled maintenance or battery replacement. As a PDU it allows to distribute the power among several loads. It is rated up to 3000VA. ...
MBS/PDU IEC 1-3kVA Item Number: 10133000 EAN: 4260074978025	An external Maintenance Bypass Switch with function of a PDU (Power Distribution Unit). It provides continuous power without shutting down the connected loads during UPS scheduled maintenance or battery replacement. As a PDU it allows to distribute the power among several loads. It is rated up to 3000VA. ...
USB Cable Item Number: 91010011	Additional communication cable ...

	Datablad
	Common Manual - Norsk
	Common Manual [DE] [DK] [EN] [ES] [FI] [FR] [IT] [NL] [NO] [PL] [PT] [RO] [RU] [SE] [SI]
	PowerWalker Basic VI 600-2200 STL [BG] [EN] [FR] [PL] [PT] [RO] [RU]
	Programvare

Compare

Compare the product with other.

Similar Models

Similar models from different series:

Basic VI 2200 STL	2200VA	Internal Batteries Included	No Battery Connector
VI 2200 GX	2200VA	Internal Batteries Included	No Battery Connector
VI 2200 SH	2200VA	Internal Batteries Included	No Battery Connector
VI 2200 SHL	2200VA	Internal Batteries Included	No Battery Connector

Produktserie

Other models in this series:

Basic VI 600 STL	600VA	Internal Batteries Included	No Battery Connector
Basic VI 800 STL	800VA	Internal Batteries Included	No Battery Connector
Basic VI 1000 STL	1000VA	Internal Batteries Included	No Battery Connector
Basic VI 1500 STL	1500VA	Internal Batteries Included	No Battery Connector
Basic VI 2200 STL	2200VA	Internal Batteries Included	No Battery Connector
Basic VI 600 STL FR	600VA	Internal Batteries Included	No Battery Connector
Basic VI 800 STL FR	800VA	Internal Batteries Included	No Battery Connector
Basic VI 1000 STL FR	1000VA	Internal Batteries Included	No Battery Connector
Basic VI 1500 STL FR	1500VA	Internal Batteries Included	No Battery Connector
Basic VI 2200 STL FR	2200VA	Internal Batteries Included	No Battery Connector
Basic VI 600 STL UK	600VA	Internal Batteries Included	No Battery Connector
Basic VI 800 STL UK	800VA	Internal Batteries Included	No Battery Connector
Basic VI 1000 STL UK	1000VA	Internal Batteries Included	No Battery Connector
Basic VI 1500 STL UK	1500VA	Internal Batteries Included	No Battery Connector
Basic VI 2200 STL UK	2200VA	Internal Batteries Included	No Battery Connector
