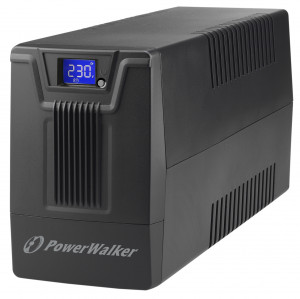

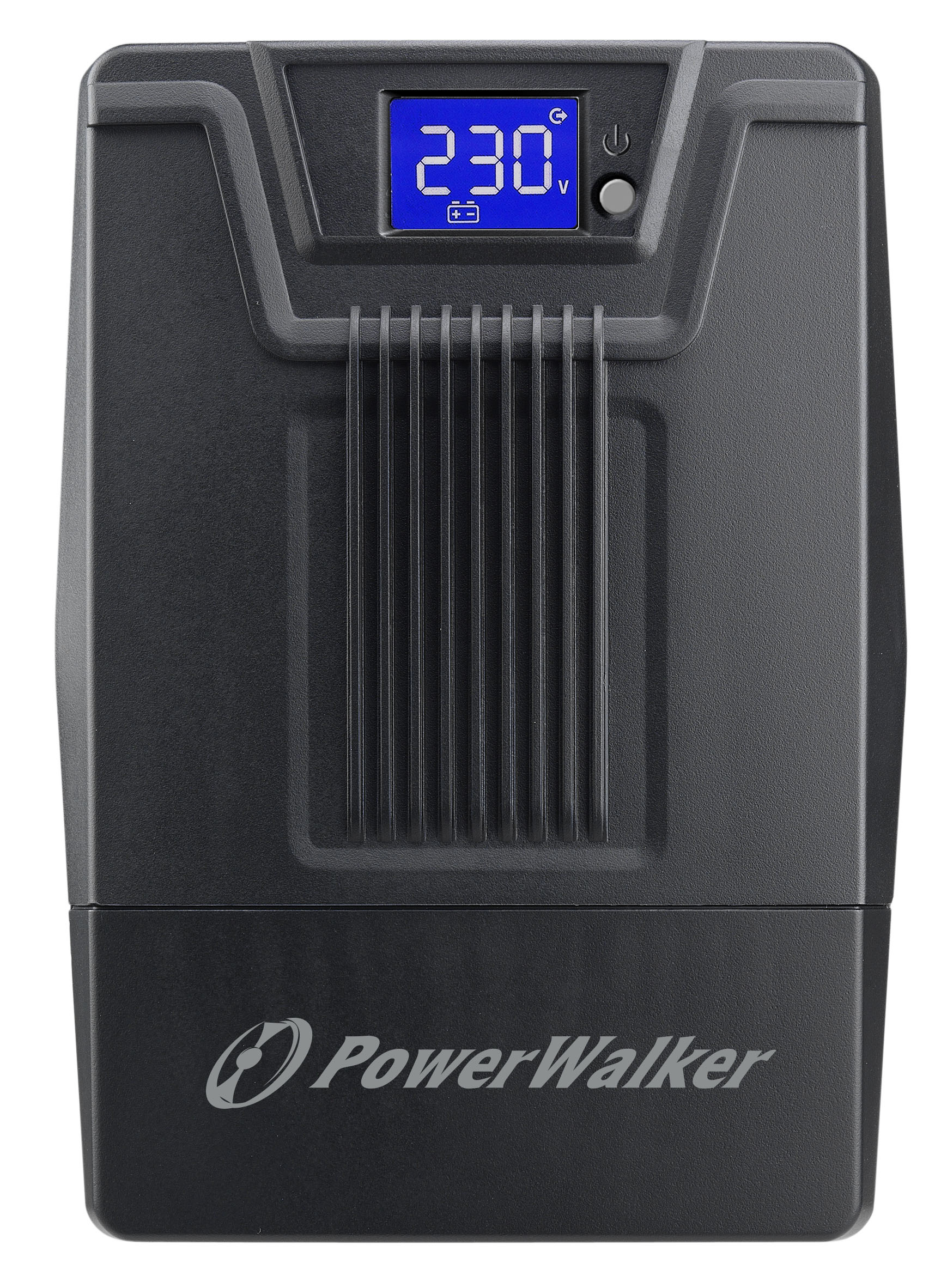

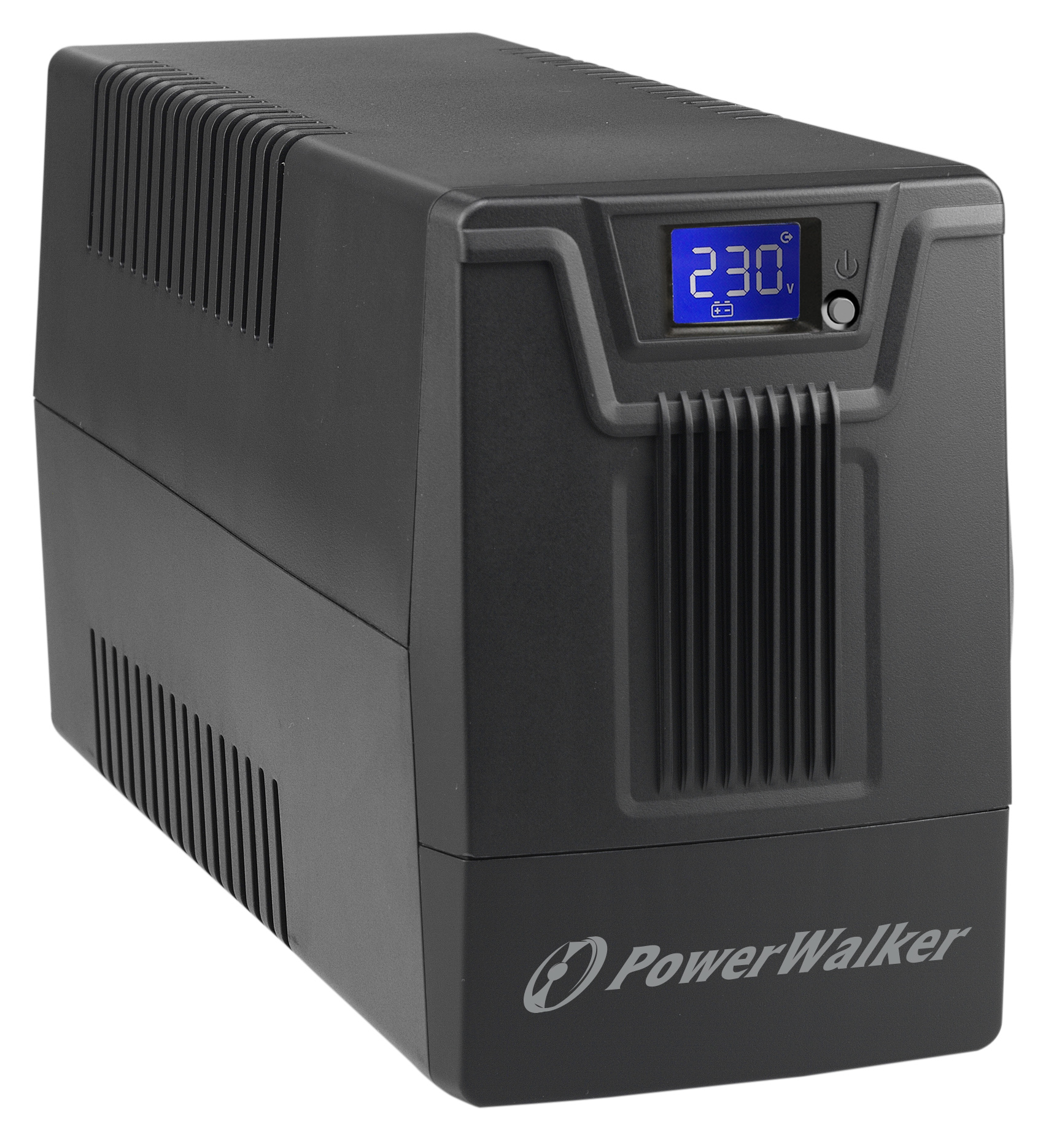

PowerWalker VI 800 SCL

Artikkelnr.: 10121140
EAN: 4260074982121

  • Human Interface Device (HID) compatible USB connection (no additional drivers needed)
  • Comprehensive display allows easy monitoring and access of UPS status
  • Reliable and economic line-interactive series
  • Compact size and high performance for home usage
  • Reduced Environmental Impact: no CD, no USB cable in the box
The PowerWalker VI 600-3000 SCL series offers a simple yet effective solution for PCs and other home applications. It is available with Type F (CEE 7/3), Type E (CEE 7/5) and Type G (BS 1363) outlets and features a microprocessor-controlled Automatic Voltage Regulator, which stabilizes voltage within a safe limit by switching to boost and buck modes. The series offers convenient touch panel which allows to scroll through most useful monitored parameters.

All UPSs in this series can be turned on directly from battery (cold start function) and internal batteries can be charged in standby mode. This model comes with a USB port with HID support and can be monitored and controlled using the PowerWalker ViewPower software (available for download from our website) or directly using O/S' native drivers thanks to HID. To offer the best price-performance and to reduce environmental impact we provide the UPS without Software CD and USB cable.


Generelle funksjoner
TypeLine-Interactive
Strømkapasitet800VA / 480W
Utgangseffektfaktor0.60
Input
Spenningsområde inngang162-290 VAC
Frekvensområde50Hz or 60Hz (self-adaptive)
Frequency (Synchronized Range)50Hz or 60Hz
Output
Nominell utgangsspenning230 VAC
Spenningsregulering±10%
Frequency (Battery Mode)±1Hz
Tekniske detaljer
Transfer Time [AC to Battery]2-6ms
Overload CapacityN/A
Charger1A
ProtectionOverload, discharge and overcharge protection
Fan LogicNo fan
Effektivitet
LINE mode full Load94.0%
Batterier og batteritid
Batterier1x 12V/9Ah
DC Voltage1 x 12V
Recharge Time4h to 90%
Full Load Backup Time0.1min
Half Load Backup Time3min
Tilkoblinger og kommunikasjon
CEE 7/3 (Type F) Outlet2
InputCEE 7/7
ProgramvareViewPower
USB portJa
HID-støtteJa
RJ-45/RJ-11 protectionJa
Omgivelser
Støynivå< 40dB
Temperatur0°C – 40°C
Luftfuktighet0% - 90% RH (non-condensing)
Logistikk
Package ContentUPS, Manual
Manual LanguagesEN/DE/FR/IT/ES/PT/PL/RU
EAN4260074982121
Bredde101 mm
Høyde142 mm
Dybde300 mm
Vekt5 kg
Giftbox - Bredde140 mm
Giftbox - Høyde220 mm
Giftbox - Dybde344 mm
Giftbox - Vekt6.2 kg
