Produktbeskrivelse

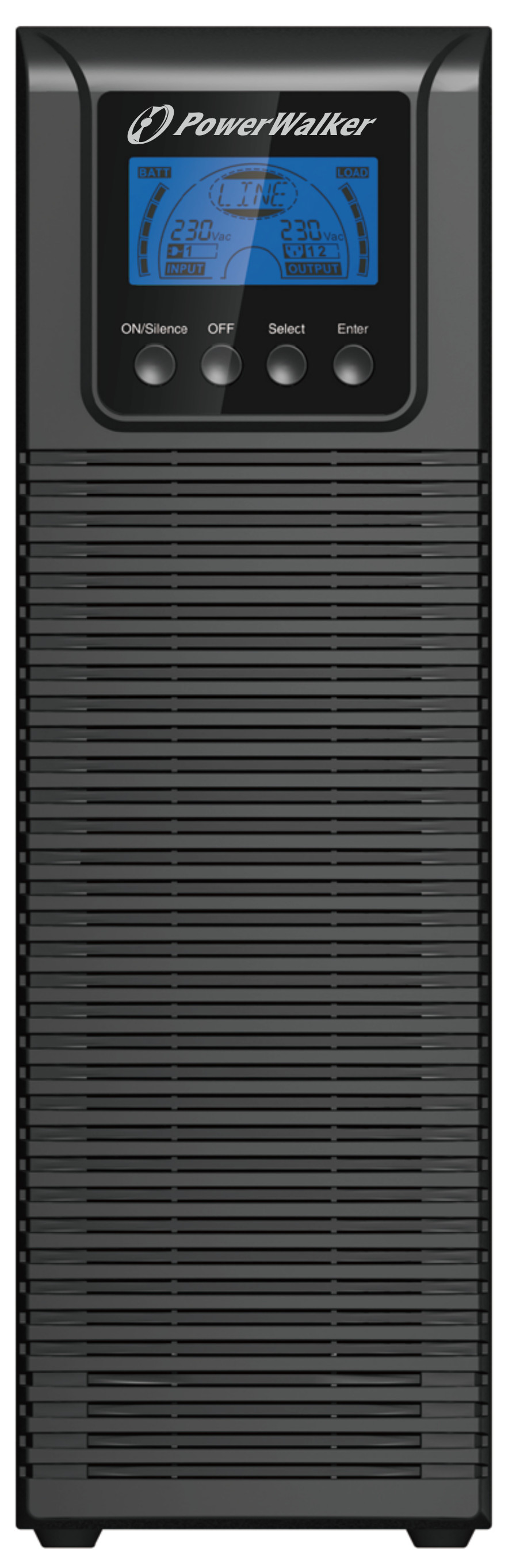

PowerWalker VFI 2000 TGS

Artikkelnr.: 10122045
EAN: 4260074978346

High efficiency results in energy saving with output power factor 0.9
Human Interface Device (HID) compatible USB connection (no additional drivers needed)
Wide input voltage range for all environments and support for AC generator
Available with stronger charger for external batteries

The PowerWalker VFI TG/TGB/TGS is a professional and versatile online UPS solution for almost all single-phase applications.
The UPS is available in different versions:
TG: with internal batteries for regular backup times
TGB: with internal batteries and connection for external battery packs for extended autonomy times
TGS: without internal batteries, but with a powerful charger for very long autonomy times

Thanks to the double converter technology, the UPS offers the best protection for sensitive systems. Additionally, the functionality is enhanced by the variety of communication options, such as HID, software or network cards.

IEC

Generelle funksjoner
Type	Online
Strømkapasitet	2000VA / 1800W
Utgangseffektfaktor	0.90
Input
Spenningsområde inngang	176-300 VAC or 80x285 VAC in bypass mode
Max THDi	≤5%
Input PF	≥ 0.99 at full load
Frekvensområde	40Hz - 70Hz
Frequency (Synchronized Range)	45Hz - 55Hz or 54Hz - 66Hz
Output
Nominell utgangsspenning	220/230/240 VAC
Ren sinusbølge	Ja
THDv	≤2% Full Linear Load; ≤5% Non-Linear Load
Spenningsregulering	±2%
Frequency (Battery Mode)	±0,05Hz
Tekniske detaljer
Load Crest Ratio	3:1
Transfer Time [AC to Battery]	0ms
Transfer Time [Inverter to Bypass]	4ms
Generator support	Ja
Overload Capacity	Line: constant @100%-105%; 1min @105%-130%; 10s @130%-150%; 300ms @>150%; bypass at higher; BAT: 10s @100%-150%; cut-off at higher
External Battery Connection	Ja
Charger	1.5A / 3A / 4.5A / 6A
Fan Logic	Always ON; Low speed: bypass/ECO or line mode with load below 70% High speed: Battery mode or line mode with load above 70%
Effektivitet
LINE mode full Load	90.0%
Batterier og batteritid
Batterier	Designed to work with external batteries. Batteries are not included
DC Voltage	4 x 12V

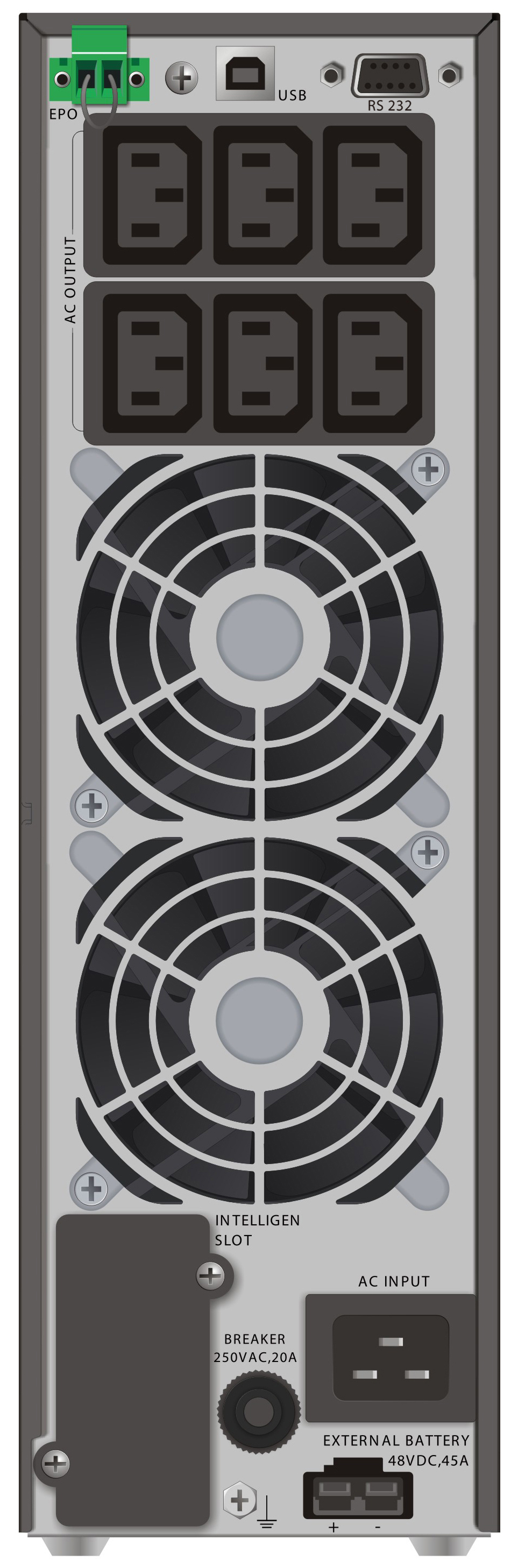

Tilkoblinger og kommunikasjon
IEC C13 Outlet	6
Input	C20
Programvare	WinPower
USB port	Ja
HID-støtte	Ja
RS-232 Port	Ja
Extension Slot	Ja, 1
EPO Port	Ja
Omgivelser
Støynivå	< 50dB
Temperatur	0°C – 40°C
Luftfuktighet	0% - 95% RH (non-condensing)
Logistikk
IEC 62040-3 classification	VFI-SS-311
Package Content	UPS, Manual, USB Cable, Input Power Cable, 2x IEC Cable
Manual Languages	EN/DE/PL
EAN	4260074978346
Bredde	102 mm
Høyde	328 mm
Dybde	390 mm
Vekt	6 kg
Giftbox - Bredde	194 mm
Giftbox - Høyde	456 mm
Giftbox - Dybde	488 mm
Giftbox - Vekt	7 kg
Pcs. per box	1
Pcs. per pal	24
